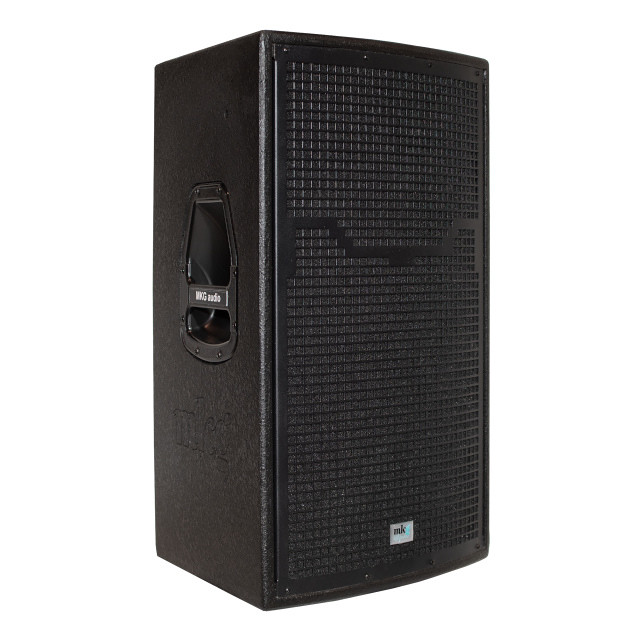

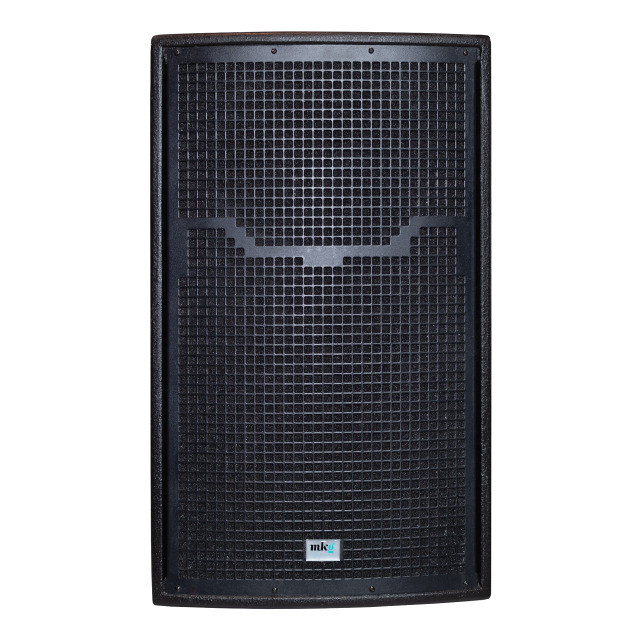

P15-3
2-way Active Speaker
Power AES/Continious
2x1400w @ 8ohm
The P15-3 is a very high power speaker in the P-Series family. It has been designed to deliver maximum performance for its weight and size.
4 presets selection on DSP.
Application
Distributed sound systems
FOH application
Available Finishes
Black or White texture paint.
Downloads
Details
P-Series is a family of individual Powered speaker system specially designed for portable or permanent high demand applications.They are made of birch plywood 12, 15mm and 18mm.
Speaker grills are from galvanized steel painted with electrostatic paint to be used also for outdoor applications.

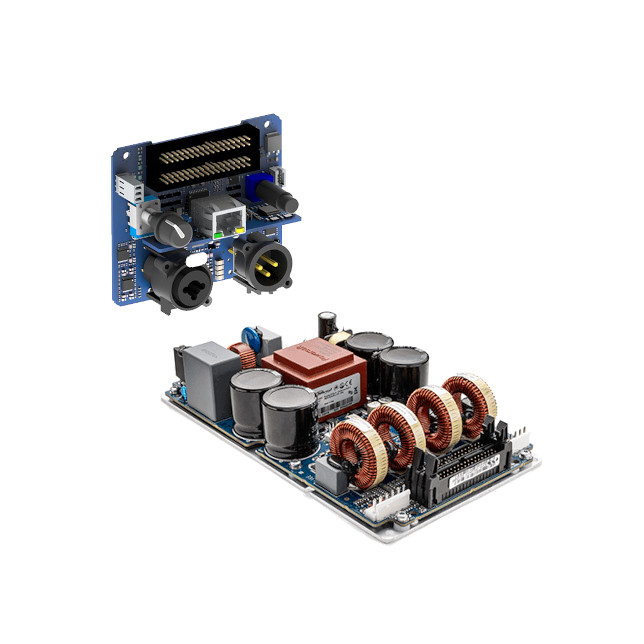

Powered by Powersoft audio amplifiers.
• These products are covered by the manufacturer’s warranty against manufacturing defects provided that the product was supplied by an authorized MKG Audio retailer under the consumer sale agreement.
• Period of warranty is 2 years for the product you have purchased.
• When purchasing MKG Audio products, please keep your receipt of purchase safe, as this validates your warranty.
Technical specifications
Frequency Response
48Hz - 20KHz +/- 3dB
Maximum Output
131dB
Crossover Frequency
1200Hz
Enclosure Material
Birch plywood 15mm
Inputs
2x XLR in/out
Finishes
Black or White texture paint
Sensitivity @ 1w/1m
98dB
Amplifier Processing
Litemod 4HC/DSP Lite E - Powersoft audio 4 preset available
Driver Components
LF 15” Neodymium woofer 8Ω
HF driver 75mm VC on 1.4''horn exit 90x60 or 60x40
Enclosure Type
Bass-Reflex
Dimensions HxWxD
830 x 468 x 431 mm
||||
