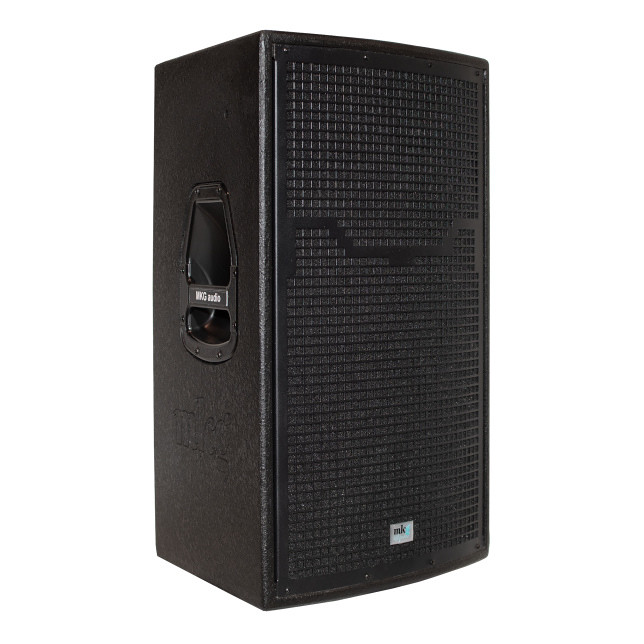

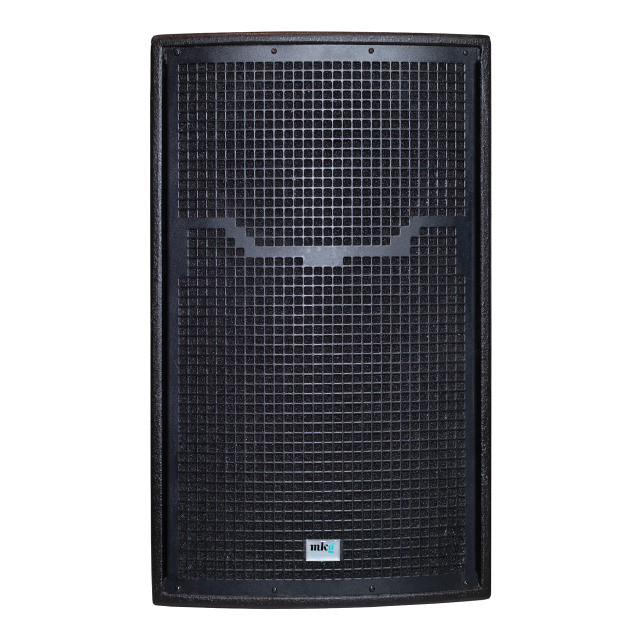

M15

2-way Passive Speaker

Power AES/Continious
500w/800w



The M15 is a versalile speaker in the M-Series family. It has been designed to deliver maximum performance for its weight and size.
Addition of a subwoofer extents the frequency range of the whole system.

Application
Distributed sound systems
FOH application


Available Finishes
Black or White texture paint.

Downloads

Social Sharing

Details

M-Series is a family of individual speaker system specially designed for portable or permanent high demand applications.

They are made of birch plywood 12, 15mm and 18mm.

Speaker grills are from galvanized steel painted with electrostatic paint to be used also for outdoor applications.

• These products are covered by the manufacturer’s warranty against manufacturing defects provided that the product was supplied by an authorized MKG Audio retailer under the consumer sale agreement.
• Period of warranty is 2 years for the product you have purchased.
• When purchasing MKG Audio products, please keep your receipt of purchase safe, as this validates your warranty.

Technical specifications

Frequency Response

50Hz - 20KHz +/- 3dB

Maximum Output

131dB

Crossover Frequency

1600Hz

Enclosure Material

Birch plywood 15mm

Inputs

2x NL4 Neutrik

Finishes

Black or White texture paint

Sensitivity @ 1w/1m

98dB

Amplifier Processing

2-way Passive crossover

Driver Components

LF 15" Neodymium woofer 8Ω HF driver 44mm VC on 1" horn exit 80x60

Enclosure Type

Bass-Reflex

Dimensions HxWxD

765 x 468 x 431 mm
