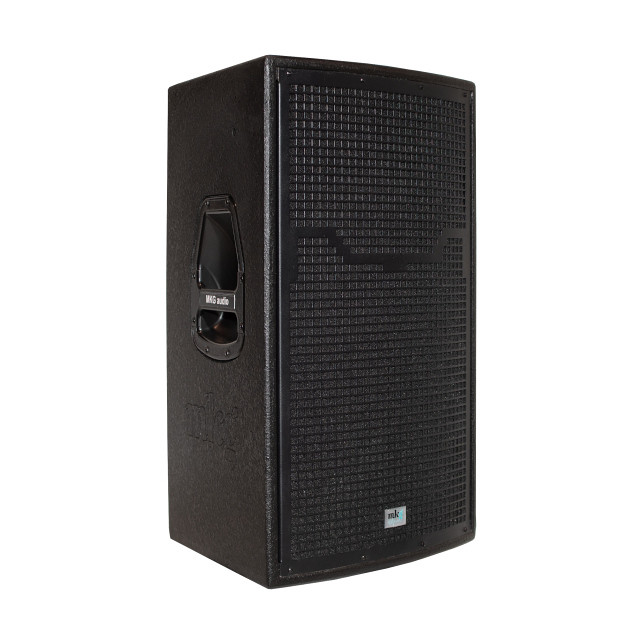

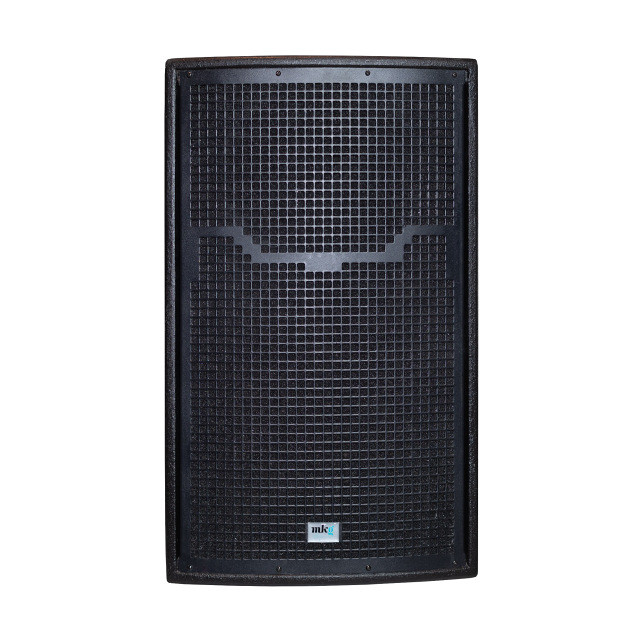

M12
2-way Passive Speaker
Power AES/Continious
500w/800w
The M12 is a versalile speaker in the M-Series family. It has been designed to deliver maximum performance for its weight and size.
Addition of a subwoofer extents the frequency range of the whole system.
Application
Distributed sound systems
FOH application
Available Finishes
Black or White texture paint.
Downloads
Details
M-Series is a family of individual speaker system specially designed for portable or permanent high demand applications.They are made of birch plywood 12, 15mm and 18mm.
Speaker grills are from galvanized steel painted with electrostatic paint to be used also for outdoor applications.
• These products are covered by the manufacturer’s warranty against manufacturing defects provided that the product was supplied by an authorized MKG Audio retailer under the consumer sale agreement.
• Period of warranty is 2 years for the product you have purchased.
• When purchasing MKG Audio products, please keep your receipt of purchase safe, as this validates your warranty.
Technical specifications
Frequency Response
55Hz - 20KHz +/- 3dB
Maximum Output
131dB
Crossover Frequency
1600Hz
Enclosure Material
Birch plywood 15mm
Inputs
2x NL4 Neutrik
Finishes
Black or White texture paint
Sensitivity @ 1w/1m
98dB
Amplifier Processing
2-way Passive crossover
Driver Components
LF 12" Neodymium woofer 8Ω
HF driver 44mm VC on 1" horn exit 80x60
Enclosure Type
Bass-Reflex
Dimensions HxWxD
650 x 390 x 347 mm
||||
