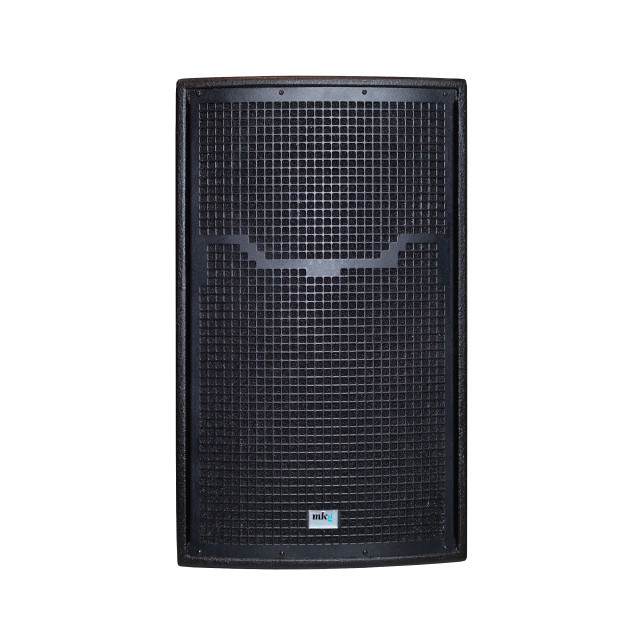

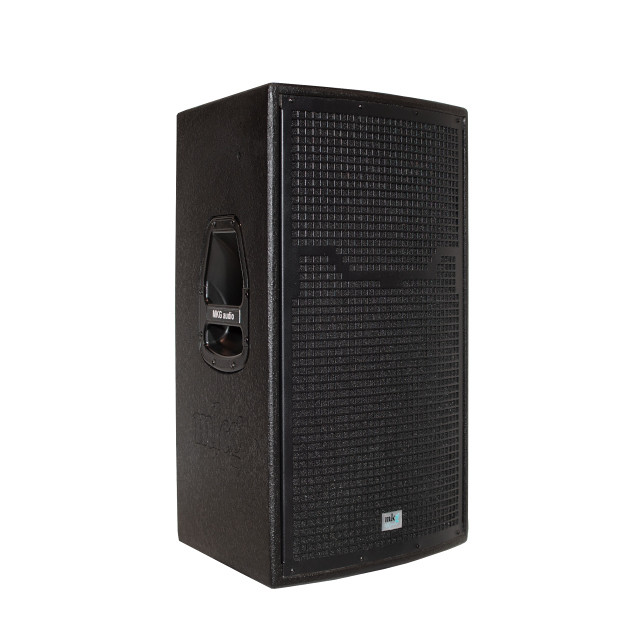

M10
2-way Passive Speaker
Power AES/Continious
280w/400w
The M10 is a compact and versalile speaker in the M-Series family. It has been designed to deliver maximum performance for its weight and size.
Addition of a subwoofer extents the frequency range of the whole system.
Application
Distributed sound systems
Available Finishes
Black or White texture paint.
Details
M-Series is a family of individual speaker system specially designed for portable or permanent high demand applications.They are made of birch plywood 12, 15mm and 18mm.
Speaker grills are from galvanized steel painted with electrostatic paint to be used also for outdoor applications.
• These products are covered by the manufacturer’s warranty against manufacturing defects provided that the product was supplied by an authorized MKG Audio retailer under the consumer sale agreement.
• Period of warranty is 2 years for the product you have purchased.
• When purchasing MKG Audio products, please keep your receipt of purchase safe, as this validates your warranty.
Technical specifications
Frequency Response
60Hz - 18KHz +/- 3dB
Maximum Output
126dB
Crossover Frequency
1600Hz
Enclosure Material
Birch plywood 12mm
Inputs
2x NL4 Neutrik
Finishes
Black or White texture paint
Sensitivity @ 1w/1m
96dB
Amplifier Processing
2-way Passive crossover
Driver Components
LF 10" ferrite woofer 8Ω
HF driver 34mm VC on 1" horn exit 90x60
Enclosure Type
Bass-Reflex
Dimensions HxWxD
510 x 337 x 318 mm
||||
