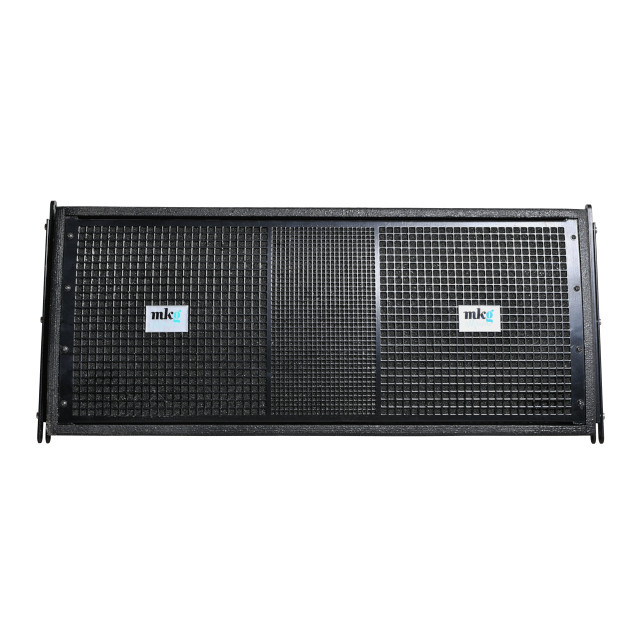

LA210
Line Array PA Speaker
Power AES/Continious
1800/3600w @ 8ohm
The LA210 is a 2-way high quality line array module with two 10" woofer drivers Eighteen sound 16Ω with 3" VC connected in parallel and two high frequency drivers 1.4" exit 16Ω eighteen sound on a waveguide ΧG14 also connected in parallel mode.
Application
FOH application
Available Finishes
Black or White texture paint.
Details

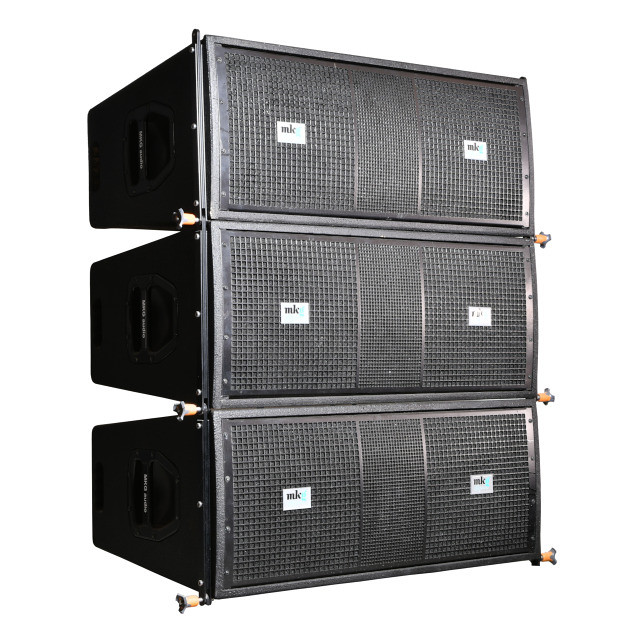

LA-Series is a family of high quality line array modules specially designed for portable or permanent high demand applications.They are made of birch plywood 15mm.
Speaker grills are from galvanized steel painted with electrostatic paint to be used also for outdoor applications.
Accessories: LA210AF rigging frame
Weight: 35Kg
• These products are covered by the manufacturer’s warranty against manufacturing defects provided that the product was supplied by an authorized MKG Audio retailer under the consumer sale agreement.
• Period of warranty is 2 years for the product you have purchased.
• When purchasing MKG Audio products, please keep your receipt of purchase safe, as this validates your warranty.
Technical specifications
Frequency Response
50 - 20000 Hz
Maximum Output
138dB
Inputs
2 Speakon NL4
Finishes
Black or White texture paint
Sensitivity @ 1w/1m
100db/118db
Driver Components
2x 10" LF
2x 1.4" HF
Dimensions HxWxD
820 x 333x 500 mm
||||
