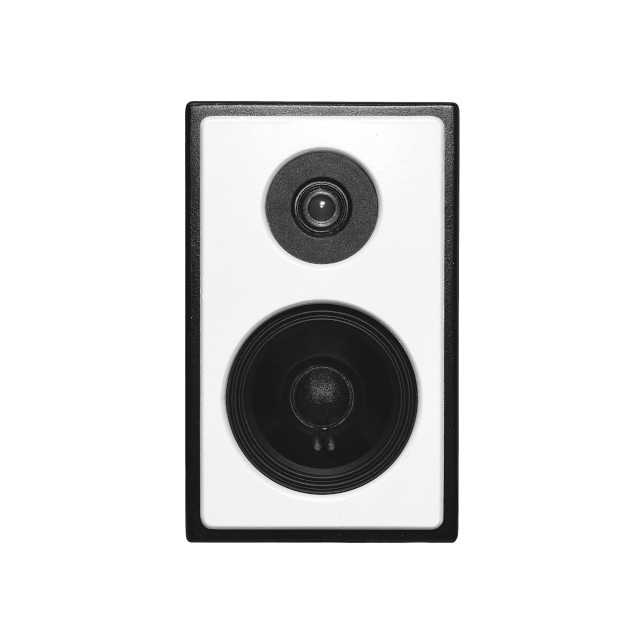

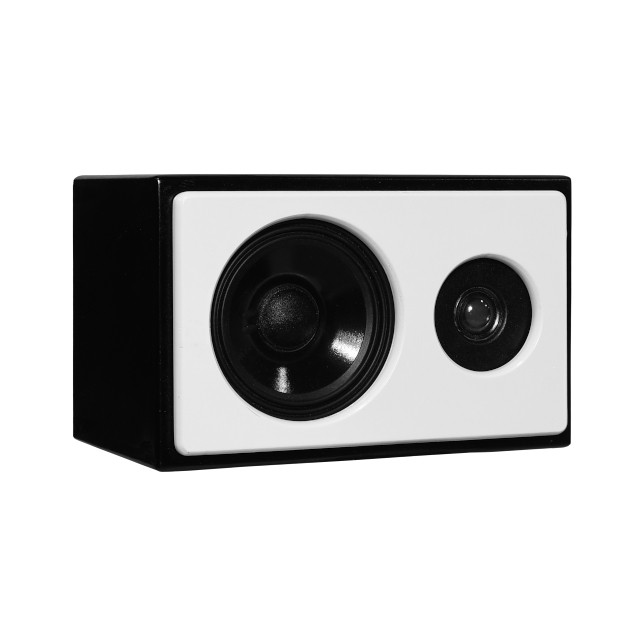

A5

2-way Passive Speaker
120w RMS



The A5 has been designed and engineered to optimize your audio experience, whether you’re listening to your favourite album or watching the latest movie.



Available Finishes
Matt Black polyourethane paint.
Front panels available in white color
(Other colors upon request)

Social Sharing

Details

A5 is made for you, for your home, your recording studio and for high performance computer audio.

Experimentation is strongly advised when initially setting up the speakers, as environment and personal preference differ with every installation. If there is insufficient bass for example, try moving your speakers closer to a wall. The opposite approach is recommended if there is excess bass.

• Wiring is achieved via a single set of cables to the terminals on the back of the loudspeakers. Internally the loudspeaker crossover guides the frequencies to the appropriate driver/tweeter. Low frequencies to the bass drivers, and high frequencies to the tweeter.
• Suggested to use a high quality speaker cable 1.5mm.

Run your speakers in by playing music at low mid listening levels for approximately 50-60 hours play time. You may find the sound will continue to improve even after the 60 hours mark.


• These products are covered by the manufacturer’s warranty against manufacturing defects provided that the product was supplied by an authorized MKG Audio retailer under the consumer sale agreement.
• Period of warranty is 2 years for the product you have purchased.
• When purchasing MKG Audio products, please keep your receipt of purchase safe, as this validates your warranty.

Technical specifications

Frequency Response

63Hz-20KHz +/-3db

Maximum Output

123dB

Amplifier Power Recommented

100-200w @8 ohm

Driver Components

LF 5" Paper waterproof treatment HF 1" Dome tweeter

Enclosure Type

Bass-Reflex

Dimensions HxWxD

275x173x185mm

Sensitivity @ 1w/1m

91dB

Amplifier Processing

2-way Passive

Crossover Frequency

3200Hz

Enclosure Material

MDF 12mm

Inputs

Binding posts

Finishes

Matt Black polyurethane paint. Front panels available in white color. (Other colors upon request)
